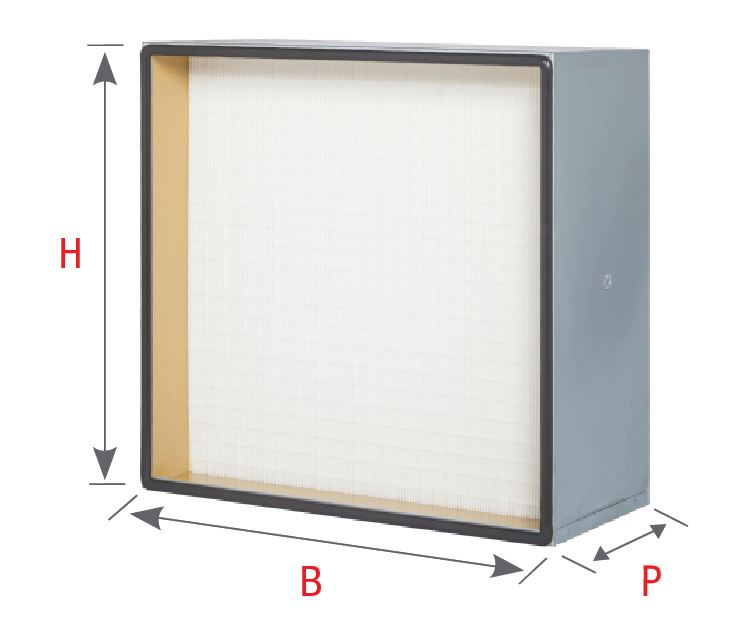

Absolute Hepa filters

Astroven (Galvanized)

The HEPA absolute filters are used for filtration of inlet, outlet and recirculation air in ventilation systems such as: Clean Rooms, Operating Theatres, Laboratories, etc. Industrial Processes: Microelectronics, food industry, optics, pharmaceutical industry, fine chemistry, etc. Treatment of Dangerous substances: Asbestos, Metal dust, Bacteria, Viruses, Radioactive Particles.

Technical features

Type: Compact Very High Efficiency Absolute Filter.
Frame: Galvanized Steel.
Filtering Element: Glass microfiber paper.
Separators: Thermoplastic glue beads.
Sealant: Polyurethane.
Joint: Bicomponent polyurethane liquid system. (Semi-circular expanded polyurethane)
MPPS Efficiency: 99.95% and 99.995%.
EN 1822 Class: H13 and H14.
Recommended Final Pressure Loss: 600 Pa.
Temperature: 80ºC in continuous service.

Advantages

– TheV-shaped pleating method guarantees an optimum geometry of the pleats and a uniform distance between them,

resulting in a lower pressure loss with a higher airflow.

– V-shaped pleating technology allows us to remove the aluminium separators and thereby eliminate the risk of

leaks due to the perforations of the aluminium separators.

– The filter is light and easy to eliminate thanks to the new manufacturing technology.

– The total use of the filtering area, in addition to the uniform dust deposition achieved through the new pleat shape

technology, leads to longer duration.

– Due to the increased filtering area, the speed of the air through the filter and the resistance to flow decrease, resulting in energy saving.

– Thanks to the uniform shape of the pleats the airflow does not generate turbulences.

– The Microven filters provide more protection and reliability as a result of the larger filtration area achieved by the new pleating

shape technology. Also filtration efficiency is improved and the cost-efficiency ratio is excellent.

– The filter media is self-extinguishing glass microfiber paper (class F-1) and resistant to humidity up to 100% relative humidity.

Category

Absolute Filtration / Clean RoomsClass: H

Certificates

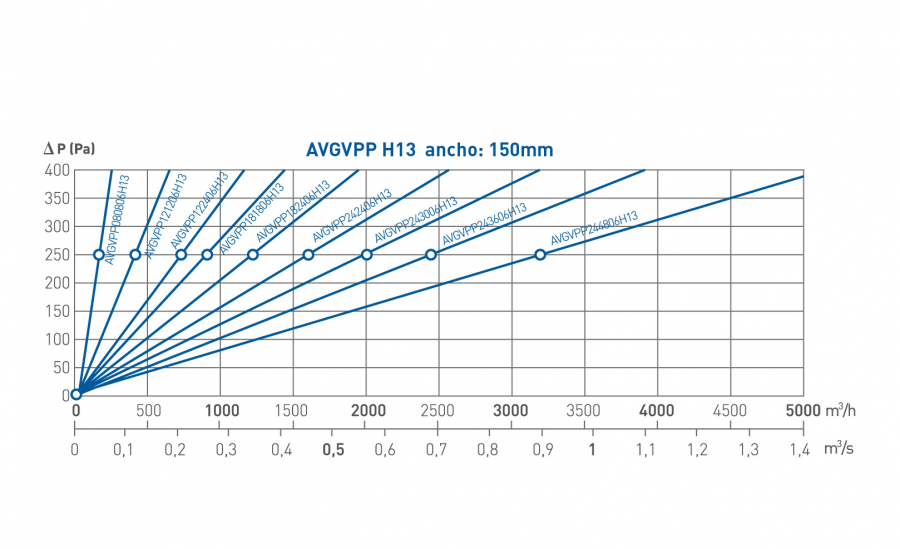

Graphic

Astroven (Galvanized)

References

*UxP: Units per box *Stock
F: Manufacture, S: Stock, SL: Limited Stock
