Metal Housing Low Depth
Metal terminal diffuser for replaceable HEPA/ULPA filters, type Laminarven for air diffusion in clean rooms with turbulent and laminar flow.
Hepa diffuser
Technical features
Type: Diffuser terminal unit for ceiling or wall installation for the final filtration of a Clean Room.
Construction: Electro-galvanised steel, welded airtight, white epoxy paint (RAL 9016) and oven dried.
Air inlet: Top air inlet (HTMBP) circular with fixing collar.
Installation: Holes for fastening, allowing easy and quick assembly.
Filter fixing: At the bottom, against the smooth, one-piece frame and fastened with fixings that provide continuous and constant pressure.
For filters: Filters 66 and 78 mm. deep.
Advantages
– Smooth coating, allows easy cleaning of the diffuser grille.
– Internal centring devices for the filters and fixed fixings for the location of the filter inside the housing, preventing it from falling out.
housing, preventing the filter from falling out.
– Easy assembly or replacement of the filter.
– Easy adaptation for fixing different filters.
– New lid fastening system.
INSTALLATION
– Rigid construction design, allowing an easy and quick assembly or installation.
– Installation on upper ceiling.
– It is also equipped with four drilled brackets for suspension.
Steel plenum:
Fitted grids:
Fixing for filter attachment:
Probes for integrity test and differential pressure measurement and clamping bracket:

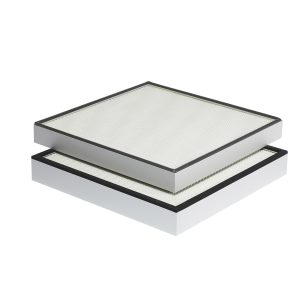

Measurements Filters
Diffusers and grids:
Category
Mounting elementsTechnical documentation
HTMBP-LOW TOP AIR INLET DEPTH
Metal Housing Low Depth
References
UxP (*): Units per box
Stock: F: Manufacture, S: Stock, SL: Limited Stock
