Quebraven Galvanized
Pre-filter for the retention of coarse particles in industrial installations and processes with a airflow, with reduced spatial area.
Prefilters metal broken surface
Technical features

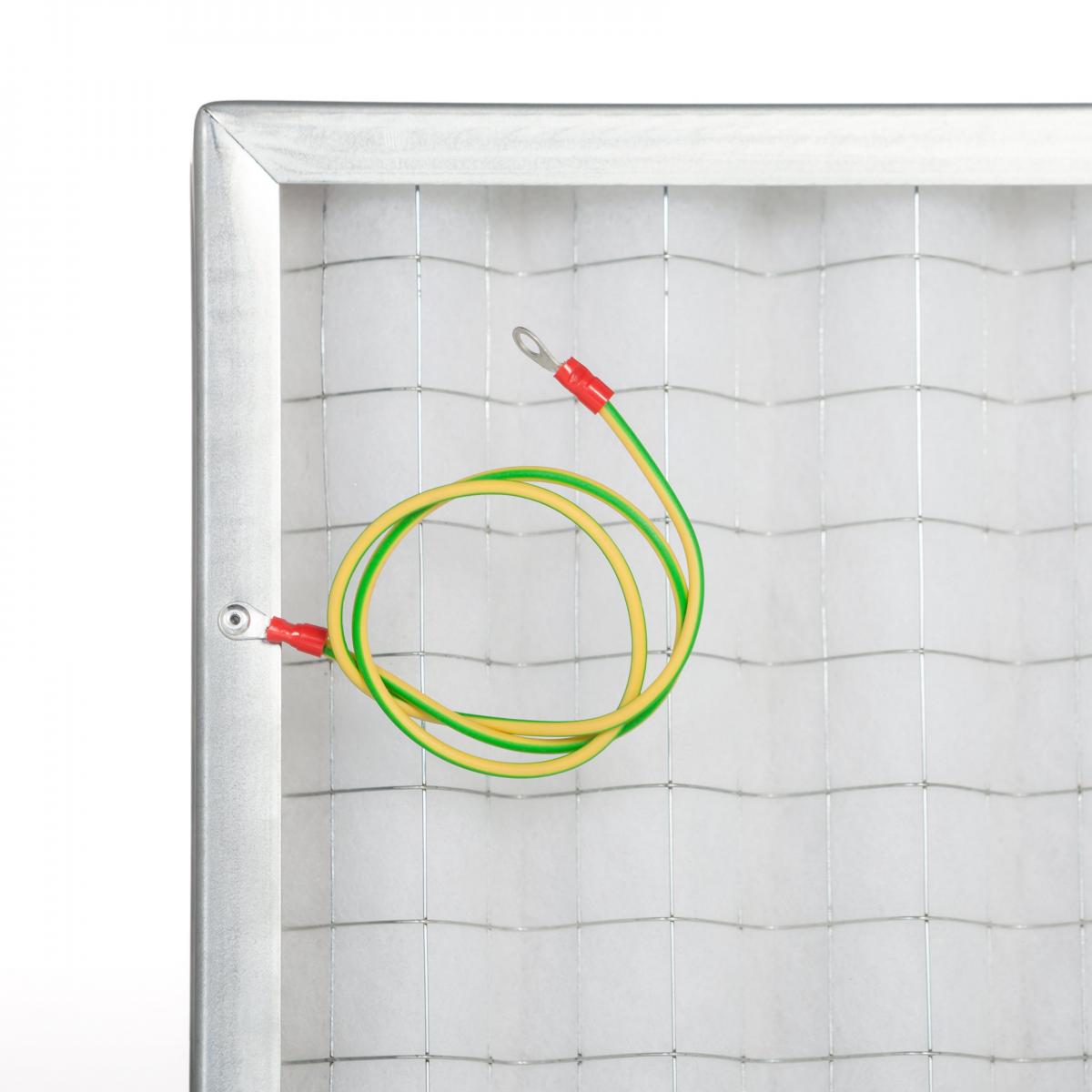

Type: Disposable filter with an uneven surface, zigzag pleated, with synthetic material and a grid on both sides.
Frame: Galvanized Steel.
Grid: Galvanized metal, on both sides.
Media: Synthetic.
Average yield % (Am): 92% <strong
Average efficiency % (Em): 40% Em 60%
EN 779 Class: G4 and M5.
ISO 16890: Coarse 65% and Coarse 85%.
Recommended Final Pressure Drop: 250 Pa.
Temperature: 100ºC.
Classification: F1.
Advantages
– Galvanized steel frame.
– GRIDS ON BOTH SIDES.
– LATERAL CLAMPING OF THE FILTER PACK BY MEANS OF A CLAMP ON THE FRAME.
– High airflows.
– Manufactured in special sizes.
– Available in ATEX.
Category
Pre-filtrationCertificates
Graphic

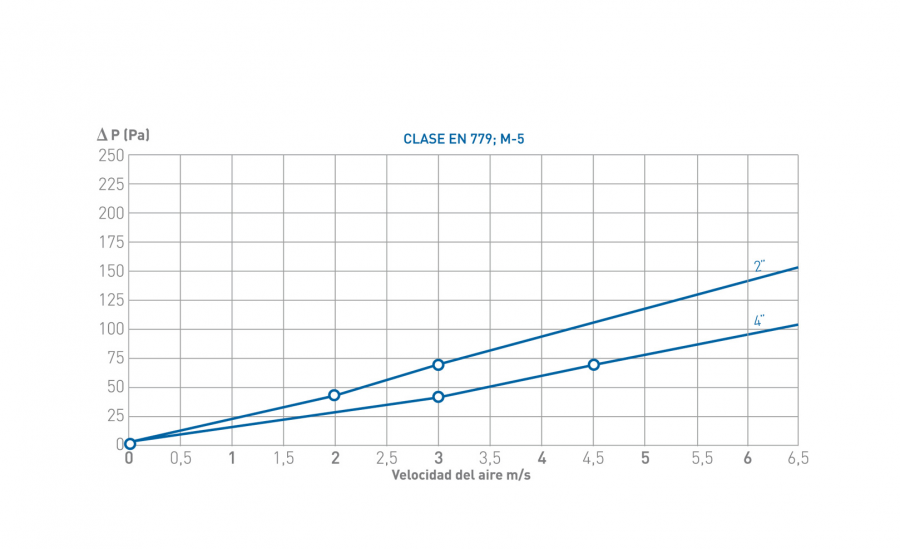

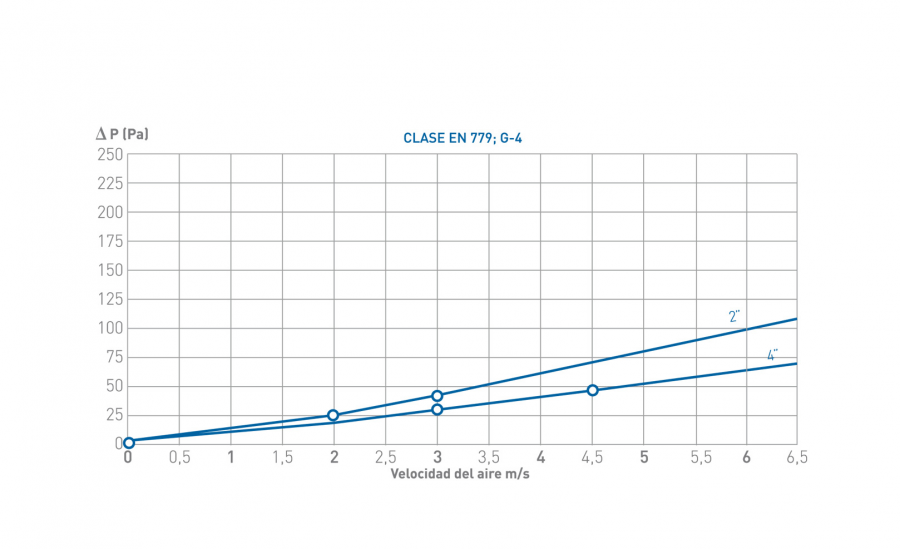

FUNCTION OF PRESSURE DROP VS. FLOW RATE
Quebraven Galvanized
References
– Other sizes: please consult.
UxP: Units per box
Stock: F: Manufacturer, S: Stock, SL: Limited Stock
